5 in 1 LED Strips RGB CCT
The 5 in 1 LED Strips (RGB + Warm White + Cold White) are an innovative lighting product that combines the flexibility of RGB with the functionality of warm white and cold white LEDs. These strips are equipped with SMD 5050 technology, which ensures high performance and longevity. You can get our 5 in 1 LED Strips in two different versions with 60 or 84 LEDs per meter and in two voltage options, 12V or 24V.
A high color rendering index (CRI) of ≥ 80 allows for true-to-life color reproduction, which is especially important in environments where accurate color reproduction is important. The strips have a width of about 12 mm and can be ideally glued into a commercially available aluminum profile, which ensures appropriate cooling of the LEDs. This is important to ensure the optimal performance and lifespan of the LEDs.
For more details on the processing and cooling of flexible LED strips, click here to open the PDF document.
Product Details:
- Operating Voltage: 12 or 24V
- LEDs per Meter: 60 or 84 LEDs
- Divisibility: 12V Version > separable every 3 LEDs / 24V Version > separable every 6 LEDs
- Power: 22 or 31 Watts per Meter
- Protection Classes: IP20, IP54, IP65, IP67
- Easy installation with 3M adhesive tape on the back

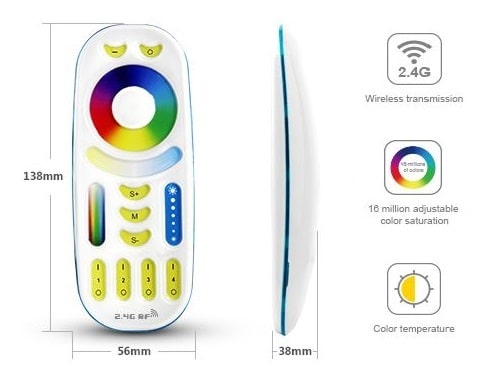

- Corresponding control also available
Lumen per Meter:
| 60 LEDs / 1 Meter | 84 LEDs / 1 Meter | |
|---|---|---|
| Red | 100lm-120lm | 140lm-168lm |
| Blue | 90lm-110lm | 126lm-154lm |
| Green | 270lm-300lm | 378lm-420lm |
| White | 350lm-390lm | 490lm-588lm |
| Warm White | 300lm-330lm | 588lm-646lm |
Our Datasheet SE-5050RGBCCT-flex-XXV-IPXX-79 provides detailed information on the technical specifications of the 5 in 1 LED Strip RGB CCT.
