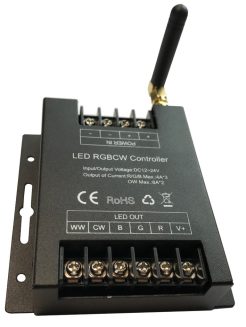

Controller

Controlling and customizing your LED lighting has never been so easy and flexible. With our universal controller for RGB CCT LED strips, a whole new world of lighting design opens up to you. This controller is not only suitable for RGB CCT LED strips but also for single-color LED strips or RGB/RGBW strips. You’ll never need a matching controller/dimmer for different LED strips again. Whether 12V or 24V LED strips, our controller can effortlessly operate all variants.

Product Features:

• Input: DC 12-24V, Output: DC 12-24V
• Maximum output currents: Red > max. 4A x 3, Green > max. 4A x 3, Blue > max. 4A x 3, Warm White > max. 8A x 2, Cold White > max. 8A x 2
• Compatible with 12V and 24V LED strips
• Easy control of single-color LED strips without an extra dimmer
• Individual control of multi-color LED strips
• Thousands of color variations possible with our 5-in-1 LED strips
• CE & RoHS certified

Product Description:

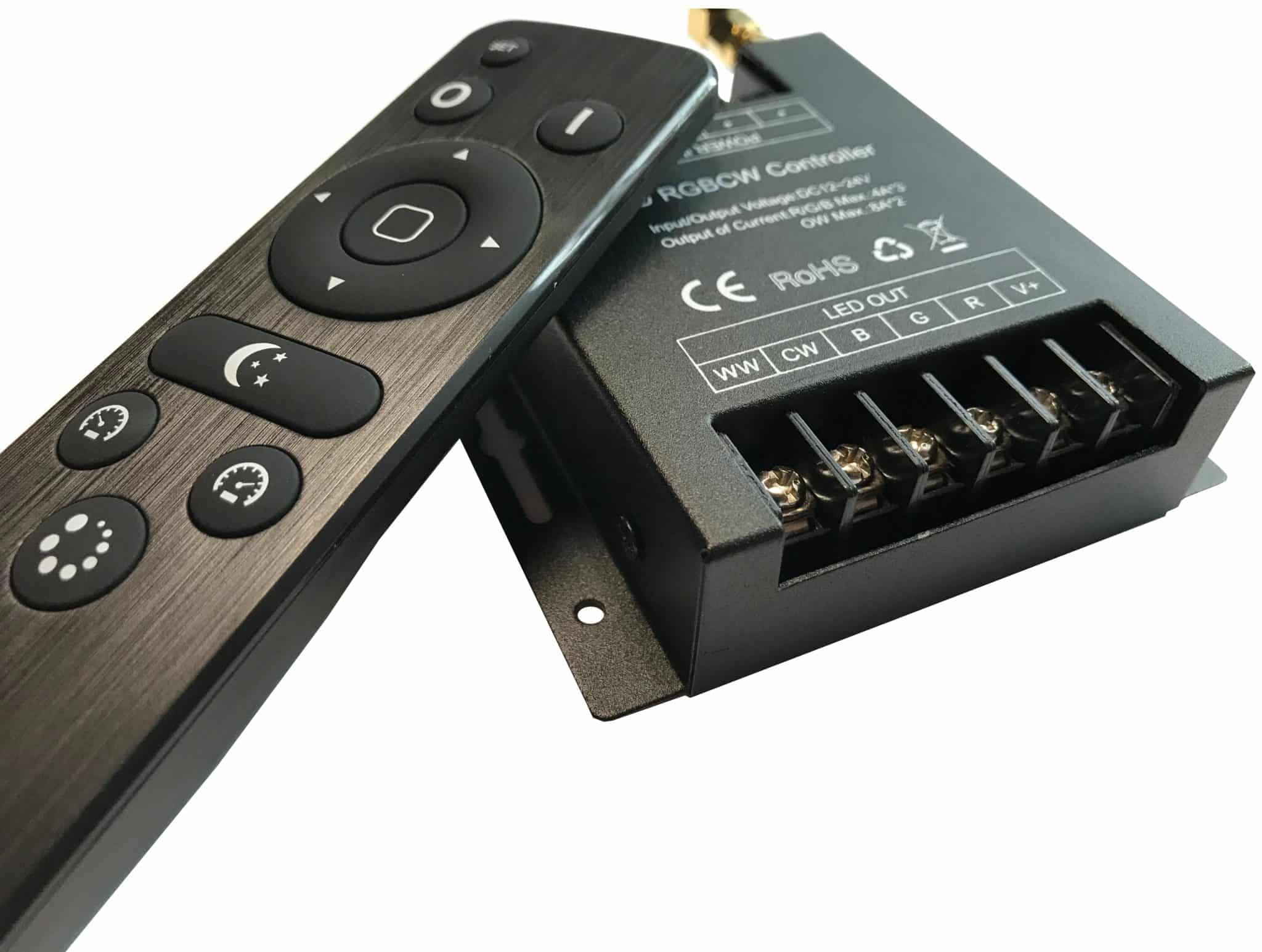

The Universal LED Controller + Remote Control Set (SE-CONRGBCCT + SE-RECRGBCCT) is ideally suited to adjust the color design of your rooms according to your wishes. Advanced PWM technology (Pulse Width Modulation) allows precise control of the LED strips. Both static colors and dynamic light effects can be set.

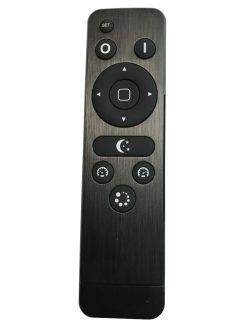

The RF remote control with control for RGBCCT (RedGreenBlue+Cold White+Warm White) and all other color combinations offers easy and intuitive operation. With the remote control, you can adjust the brightness, the static color selection, and the dynamic change of light effects. The remote control requires 2x AAA batteries (not included).

Technical Data:

• Operating voltage: DC12-24V
• 5 outputs: R / G / B Max: 4A * 3CH CW / WW Max: 8A * 2CH
• 14-button RF remote control with a range of up to 20 meters
• Memory function to save the last used setting
• 13 modes in total, including 12 static colors and 1 dynamic change
• 2 years warranty, excluding: damage and overloads

Operating Instructions:

The installation and operation of the controller are straightforward. After connecting the cables of the LEDs and the power supply, you can turn on the controller and make the desired settings via the RF remote control. The remote control offers a variety of options for adjusting brightness, color selection, and dynamic light effects.
